How to Remove Mill Scale from Steel: Tools, Methods, and Specifications

Mill scale is one of the most common reasons coating systems fail prematurely. It looks clean — the smooth, bluish-grey layer on hot-rolled steel often passes a casual visual check. But it is electrochemically incompatible with the steel beneath it and mechanically unreliable as a base for the coating above it, and every bare-metal surface preparation grade requires its removal. This article explains what mill scale is, why it must be removed, which standards apply, which removal methods work and how to verify the result — including grit-free options for sites where abrasive blasting is not possible.

What is mill scale?

Mill scale is a layered iron oxide coating that forms on the surface of steel during hot rolling. It consists of three iron oxide phases — wüstite (FeO), magnetite (Fe₃O₄) and haematite (Fe₂O₃). It is harder than the underlying steel, brittle, and electrochemically cathodic relative to the base metal, which makes it a driver of corrosion and coating failure if it is left in place.

How mill scale forms

When steel is processed through a hot rolling mill at temperatures above 700 °C, the surface reacts with oxygen in the atmosphere to form a layered oxide crust. The outermost layer is haematite (Fe₂O₃), below it magnetite (Fe₃O₄), and closest to the steel substrate, wüstite (FeO). This layered structure forms rapidly and adheres tightly to freshly rolled steel — tightly enough that it survives transport, storage and handling without obvious detachment.

Why mill scale is a problem for coatings

Mill scale causes coating failure through three mechanisms that act at the same time once a coating is applied over intact mill scale.

• Galvanic corrosion. Mill scale is cathodic relative to the steel it sits on. Where mill scale is discontinuous — cracked, chipped or porous — the exposed steel becomes the anode in a galvanic couple. Corrosion concentrates at these points and propagates laterally under the coating, causing blistering and delamination that spreads well beyond the original defect.
• Poor adhesion. Mill scale has a different coefficient of thermal expansion to the steel substrate. Temperature cycling causes differential movement, breaking the bond between mill scale and steel — and taking the coating with it. Even where the initial adhesion test passes, coating systems applied over mill scale tend to have a markedly shorter service life in cyclic thermal environments.
• Soluble salt entrapment. Cracked and porous scale traps moisture and contaminants. Chlorides and sulfates accumulate beneath and within it during storage, transport and outdoor exposure. When a coating is applied over contaminated mill scale, those salts are sealed in and osmotic blistering can follow. The reliable remedy is removal of the mill scale layer, followed by salt contamination testing to SSPC-Guide 15 or ISO 8502-6 / ISO 8502-9 where the specification requires it.

Which standards require mill scale removal?

All major international surface preparation standards address mill scale. The degree of removal required varies by standard — and therefore by coating specification and service environment. The blast-cleaning grades (SP 5, SP 10, SP 6) and the bare-metal power tool grades (SP 11, SP 15) require all visible mill scale to be removed; the hand and power tool cleaning grades (SP 2, SP 3) do not.

For coating systems specified into offshore, energy or marine projects, SSPC-SP 10 / Sa 2½ is often the minimum surface preparation requirement — always check the coating data sheet and project specification. SSPC-SP 5 / Sa 3 is commonly specified where full immersion or continuous splash-zone exposure is expected.

Methods for removing mill scale from steel

Mill scale removal falls into four broad method categories: abrasive blasting, chemical treatment, thermal methods and mechanical methods. Each carries trade-offs in performance, cost, portability and regulatory compliance. The right choice depends on the site environment, the surface preparation grade required, the available infrastructure, and whether the work is new-build fabrication or in-service maintenance.

Abrasive blasting (grit, shot, sand)

Abrasive blasting — accelerating grit, steel shot or other media at high velocity against the steel surface — remains the benchmark for large-area mill scale removal on new-build fabrication. It reliably achieves SSPC-SP 10 and SP 5 on large continuous surfaces and produces the anchor profile required by high-build epoxy and thermal spray systems. However, it is not suitable for every environment or every scope of work.

• Where it works well: blast rooms and blast yards for structural steel fabrication; new-build vessel construction; large-area structural preparation where containment is practical.
• Where it struggles: ATEX-classified areas on live plant, where blasting is often restricted by the site's ignition-risk assessment and permit system; operating assets where containment is not practical; confined spaces; spot repairs where mobilising blast equipment costs more than the area justifies; and jobs where spent abrasive mixed with lead- or chromate-containing coating becomes a hazardous waste stream.

Chemical pickling and acid treatment

Pickling dissolves mill scale through immersion in, or application of, acids — typically hydrochloric or sulphuric acid, sometimes phosphoric acid for lighter contamination. It is used widely in tube and strip processing where full immersion in a controlled bath is practical.

• Where it works well: tube mills, strip lines and controlled fabrication facilities with acid bath infrastructure and waste treatment.
• Where it struggles: field applications; in-service maintenance; large structural components that cannot be immersed; sites where acid handling and spent acid are regulatory concerns (in the US, spent pickle liquor from steel finishing is a listed hazardous waste, K062). Pickling leaves no anchor profile and introduces a hydrogen embrittlement risk in high-strength steels, which limits its use on structural members in fatigue-sensitive service.

Flame cleaning

Flame cleaning uses a multi-flame torch to heat the steel surface rapidly. Differential thermal expansion between the mill scale and the steel causes the scale to crack and detach, and the loosened scale is then wire-brushed. It removes only part of the scale, creates no anchor profile and does not on its own reach a bare-metal or blast-cleaning grade. It has largely been replaced by mechanical methods.

• Where it works well: pre-fabrication treatment of structural steel where open-flame hot work is permitted and residual scale is acceptable to the specification.
• Where it struggles: ATEX environments; no-hot-work zones; any specification that calls for SP 10-type cleanliness or a measured profile without follow-on blasting or mechanical profiling; thin-wall sections at risk of distortion.

Mechanical methods: needle guns, wire brushes, angle grinders, bristle tools

Mechanical methods remove mill scale through physical impact or abrasion. They range from basic hand tools to specialised power tools, and performance varies widely. Impact matters: mill scale is a brittle oxide on a ductile steel, so a sharp impact fractures and ejects it, while rubbing tends to polish it. A hand wire brush reaches St 2 at best; a Bristle Blaster® produces cleanliness comparable to Sa 2½ (up to Sa 3) with a controlled anchor profile in documented tests.

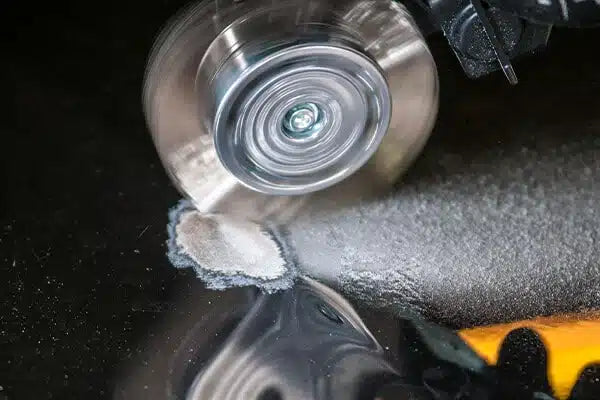

The Bristle Blaster®: mechanical mill scale removal comparable to SP 10

The Bristle Blaster® is a rotary-impact power tool that removes mill scale, rust and existing coating while creating an anchor profile in the same pass — without abrasive media. In documented tests it produces cleanliness comparable to SSPC-SP 10 / Sa 2½ (up to Sa 3); results on any given job vary with steel grade, rust grade, belt and technique.

How it removes mill scale

The Bristle Blaster® works differently from wire brushing. The hardened, forward-angled wire tips of the rotating belt are held back by an accelerator bar and then released, so they strike the substrate at high velocity and rebound rather than rub across it. Each impact fractures and ejects the mill scale layer, cold-works the surface and leaves a small crater — which is what builds the anchor profile. The mechanism has been described in NACE research by Prof. Robert J. Stango (Marquette University); his 2014 paper on bristle blasting reported compressive residual stress in the near-surface layer — a signature of an impact mechanism, not abrasion.

Profile and cleanliness: what to expect

Documented results on standard API 5L pipeline steel:

• Cleanliness: comparable to SSPC-SP 10 / Sa 2½; comparable to Sa 3 with additional passes
• Anchor profile: 65–85 µm Rz (2.6–3.3 mil) with the standard belt; up to 120 µm Rz maximum
• Production rate: about 1.1 m²/h with a single belt (API 5L X42 pipe, rust grade B); around 3 m²/h on flat surfaces with the Double models
• Profile measurement: ASTM D4417 Method C using Testex Press-O-Film® X-Coarse replica tape (38–115 µm / 1.5–4.5 mil range); subtract the 50.8 µm (2 mil) Mylar carrier from the micrometer reading

Where it is specified

The Bristle Blaster® is used for mill scale and corrosion removal across energy infrastructure, offshore platforms, pipelines and industrial maintenance — documented MontiPower® case studies include a Shell weld-seam project and field joint coating for Total E&P in Bolivia. It is typically chosen for in-service maintenance scopes where abrasive blasting is not available, not permitted or not economic.

ATEX evaluation

The Bristle Blaster® Pneumatic has undergone an ATEX 2014/34/EU conformity evaluation as Category 2 equipment for zone 1 explosive gas and zone 21 explosive dust; the marking (II 2G c IIA T4 X) applies to specific Bristle Blaster® belts used on the original pneumatic drive unit. It is fully pneumatic with no electrical components, so surface preparation can continue on refineries, platforms and petrochemical sites where electric tools are excluded. The ATEX evaluation does not replace the site permit: whether work can proceed in a classified area is decided by the operator's zoning, risk assessment and permit system.

Removing heavy mill scale or combined rust: the Two-Step Method

On steel with both heavy corrosion and a thick mill scale layer — common on stored structural steel, aged pipe, or surfaces that have been partly treated and left — a single-pass approach with the Bristle Blaster® may require multiple passes or extended cycle time. MontiPower's Two-Step Method addresses this with a dedicated pre-treatment tool.

Step 1: Tercoo® — heavy corrosion and coating removal

The Tercoo® is a tungsten carbide pin disc that runs on the same drive unit as the Bristle Blaster®. It is designed for rapid removal of heavy rust, laminated corrosion and old coating — the material that would otherwise load up or slow a Bristle Blaster® belt. The Tercoo® disc removes bulk contamination without generating significant heat or distorting the substrate.

Step 2: Bristle Blaster® — cleaning and profiling

Once the Tercoo® has cleared bulk contamination, the operator switches to the Bristle Blaster® belt on the same drive unit. The Bristle Blaster® then brings the surface to cleanliness comparable to SP 10 with a controlled anchor profile. Together, the two steps cover the range of mill scale and rust conditions typically encountered in the field, without abrasive media or additional mobilisation.

Choosing the right mill scale removal method

Verifying mill scale removal: inspection methods

Once mill scale removal is complete, two parameters are verified before coating application: surface cleanliness and anchor profile. Cleanliness is defined by the SSPC/NACE or ISO grade; the minimum profile is set by SSPC-SP 11 (for bare-metal power tool cleaning), the coating data sheet or the project specification.

Cleanliness verification

Cleanliness is assessed visually against ISO 8501-1 photographic reference standards (for rust grades A–D) or SSPC-VIS 1. For an SP 10 / Sa 2½ result, the surface must match the reference, with staining on no more than 5% of each unit area. Under raking light, the surface should show a uniform matte texture with no blue-grey scale remaining outside pit bottoms. A profile below the specification minimum on mill-scaled steel suggests the scale was polished rather than removed.

Anchor profile measurement

Anchor profile is measured to ASTM D4417 — Method B (depth micrometer) or Method C (replica tape). Method C, using Testex Press-O-Film® replica tape, is widely used for verification and documentation on project sites.

Procedure for Method C:

• Select X-Coarse grade tape (measurement range 38–115 µm / 1.5–4.5 mil) for Bristle Blaster®-prepared surfaces
• Apply tape to the prepared surface and burnish it with the tool provided in the kit until the compressible foam is uniformly darkened
• Measure tape thickness with a calibrated spring-loaded micrometer
• Subtract the Mylar carrier thickness (50.8 µm / 2 mil) from the reading to obtain the surface profile (peak-to-valley height)
• Take the number of readings required by the specification per representative area; record mean and range

For Bristle Blaster®-prepared API 5L steel, expect micrometer readings of roughly 116–136 µm, corresponding to a 65–85 µm profile after subtracting the carrier.

Soluble salt testing

After mill scale removal, soluble salt testing is recommended on any surface that has been exposed to marine, offshore or industrial atmospheric contamination. Use the Bresle patch method with conductivity measurement (ISO 8502-6 / ISO 8502-9, SSPC-Guide 15) or an equivalent method. MontiPower's M-TESTCO division supplies test and inspection equipment for verifying surface preparation on site. Acceptance limits are set by the coating specification; many marine and offshore specifications use limits in the region of 20 mg/m² (2 µg/cm²), and some are tighter — confirm the value before testing.

Frequently asked questions

Can you paint over mill scale?

You can apply paint over mill scale, but coatings over intact scale tend to have a much shorter service life. Mill scale is cathodic to the steel, so wherever it cracks or chips, corrosion concentrates under the coating. Most coating data sheets for protective systems require mill scale removal, typically to SSPC-SP 10 / Sa 2½ or SSPC-SP 11, and warranties generally depend on meeting the specified preparation.

Will a wire brush remove mill scale?

A hand wire brush removes loose and partly detached mill scale only, reaching SSPC-SP 2 (St 2) at best. Tightly adherent scale on new hot-rolled steel stays in place, and power wire brushing (SSPC-SP 3 / St 3) tends to polish it rather than remove it. For a bare-metal grade or a result comparable to SP 10, use an impact tool such as bristle blasting, or abrasive blasting.

What is the difference between mill scale and rust?

Mill scale forms during manufacture at high temperature as a dense, layered iron oxide: blue-grey, harder than the steel and tightly adherent on new material. Rust forms afterwards through electrochemical corrosion in the presence of moisture and oxygen; it is brown-orange, porous and weaker. On aged steel both occur together, often with rust under cracked scale — the case the Two-Step Method (Tercoo® then Bristle Blaster®) addresses.

How hard is mill scale?

Mill scale oxides, particularly magnetite, are considerably harder than mild structural steel such as S235 or A36, and the scale is brittle while the steel is ductile. That is why rubbing tools tend to polish mill scale instead of removing it, and why impact methods, which fracture and eject the brittle oxide, remove it more reliably.

Is mill scale removal required before welding?

Welding codes and procedures generally require weld faces to be free of loose or thick scale, rust, oil, moisture and other contaminants that cause porosity and inclusions; how much tight scale may remain depends on the code and the welding procedure specification. Grinding is the usual pre-weld method. The Bristle Blaster® is mainly used after welding, to prepare weld seams and heat-affected zones for coating.

Can mill scale be removed without sandblasting?

Yes. Bristle blasting removes tightly adherent mill scale without abrasive media and, in documented tests, produces cleanliness comparable to SSPC-SP 10 / Sa 2½ with a 65–85 µm Rz profile. It is used where blast containment is impractical: spot repairs, confined spaces, in-service maintenance and, with the ATEX-evaluated Bristle Blaster® Pneumatic, classified areas subject to the site permit.

How long does mill scale removal take?

With a single-belt Bristle Blaster®, a documented rate is about 1.1 m² per hour on API 5L X42 pipe; the Double models reach around 3 m² per hour on flat surfaces. Actual rates depend on steel, scale and rust condition. In the Wales & West Utilities field trial, a small corrosion repair took 45 person-minutes with bristle blasting against 260 with grit blasting, mostly due to set-up and clean-up.

What SSPC standard covers mill scale removal?

SSPC-SP 10 / NACE No. 2 (ISO 8501-1 Sa 2½) is the most commonly specified blast grade: all visible mill scale removed, with staining on no more than 5% of each unit area. SSPC-SP 5 / NACE No. 1 (Sa 3) allows no staining. For power tools, SSPC-SP 11 requires bare metal with a minimum 25 µm profile. Bristle blasting meets SP 11 and gives results comparable to SP 10.
