This article explains what bead blasting is, how it works, which media are used, where its finish is useful and where it falls short — especially when the goal is preparing steel for a protective coating. It also covers grit-free alternatives for small and hard-to-reach areas.

Bead blasting is a widely used method of surface treatment. It is an effective and efficient way of removing dirt, light oxidation and surface residue from different materials. There are various surface preparation techniques to choose from, and abrasive blasting is the best-known of them. It is often used for removing coatings, mill scale, paint and other contaminants. In most cases, abrasive blasting propels an abrasive medium against the surface with compressed air, removing material from the object. There are many different media and techniques, for example sandblasting, vapor blasting, vacuum blasting, wheel blasting and bead blasting. Each has its own advantages and disadvantages. In this article, we focus on bead blasting.

What is bead blasting?

The term bead blasting is often used loosely for a range of blasting techniques, such as sandblasting, grit blasting and abrasive blasting. That is not accurate, since each has its own media and purpose. Strictly, bead blasting is blasting with a round, spherical medium, most often glass beads. Bead blasting is mainly used for finishing, cleaning, deburring and peening the surface of an object, on metals and many other materials.

How does bead blasting work?

The glass bead media is fed from a pressure vessel or a suction (siphon) system and propelled by compressed air through a nozzle against the surface, at settings chosen for the part and the finish. Because the spheres strike and rebound rather than cut, they remove contaminants and debris while creating a smooth, fine, uniform finish. Manufacturers' data describe glass beads as suited to gentle cleaning, deburring, smoothing, matting and peening, and recommend keeping blast pressure moderate (for example, not above about 4 bar for one manufacturer's beads) so that the beads do not shatter. The main advantages of bead blasting come from this low etching effect and the versatility it offers across finishing tasks.

What does a bead blast finish look like?

When it comes to giving metal surfaces an even texture, a bead blast finish is a popular choice among manufacturers and craftsmen. Small glass beads are shot at the surface to create a uniform satin or matte finish. The result is a smooth, even texture that can hide machining marks and minor imperfections and gives a clean, consistent look. The peening action can also leave a light compressive layer at the surface. For appearance parts, a bead blast finish is often the end result; for parts that will be painted or coated, the finish is usually too smooth to be the final preparation step.

Advantages of bead blasting

• Gentle on the substrate: round media peen rather than cut, so dimensions and fine detail are largely preserved.
• Uniform cosmetic finish: an even satin-matte appearance on stainless steel, aluminum and other metals.
• No crystalline silica in the media: blasting glass beads are made from soda-lime glass rather than quartz sand, so they avoid the respirable crystalline silica hazard of silica sand.
• Reusable media: in a cabinet or recovery system, glass beads can be cleaned and recycled for several cycles before they break down.

That does not make bead blasting harmless. Beads fracture into fine dust with use, and the coating, rust and dirt removed from the part become airborne particles too. Spent media contaminated with lead- or chromate-containing paint may need to be handled as hazardous waste. Dust control and respiratory protection remain necessary.

Disadvantages of bead blasting

Bead blasting is not the best option for heavy rust, tight mill scale or thick coatings: it is slow on tough materials because the spheres peen rather than cut. Glass beads also break down faster than steel media. The most important limitation for coating work is the profile: bead blasting leaves a smooth, dimpled surface rather than the angular anchor profile that most protective coating specifications require for adhesion. While bead blasting has clear benefits for finishing, consider these limitations when choosing a method for surface preparation before painting.

Common tools for bead blasting

The most common equipment for bead blasting is the blast cabinet: an enclosed booth in which the operator works through glove ports, with a viewing window, lighting, a dust collector and a media recovery system. The cabinet must seal well to keep media and dust inside. The blast gun and nozzle are central to the result, and the air supply must match the gun. Larger parts are processed in walk-in blast rooms or automated machines with the same principle of contained blasting and media recovery.

What is the difference between bead blasting and sandblasting?

The main difference between bead blasting and sandblasting is the blast medium. Bead blasting uses round media, usually glass beads, to give a uniform finish. Sandblasting traditionally uses silica sand. Silica sand produces respirable crystalline silica dust, which can cause silicosis and lung cancer; for that reason its use is restricted in many countries and tightly regulated by exposure limits such as OSHA's respirable crystalline silica standard in the US (see sandblasting vs. abrasive blasting).

Media type is not the only difference. Sandblasting with angular media is faster at removing rust and coatings and is more aggressive on the substrate, creating a rougher, angular profile. Bead blasting is slower, gentler and produces a smoother surface.

What media are used in bead blasting?

The right media depends on the material, the desired finish and the application. Strictly speaking only spherical media are "beads", but the following media are commonly used in bead blasting equipment:

Glass beads

Fine glass beads are the classic bead blasting medium. They are usually made from lead-free soda-lime glass with no free crystalline silica. They can be recycled several times in a recovery system and do not change the color of the base material.

Steel shot

Steel shot consists of round steel pellets. It is much heavier and more durable than glass and is widely used for shot peening and for cleaning castings and forgings. Being heavier, it needs more powerful equipment, such as wheel blast machines. Steel shot does not itself make a surface corrosion resistant; the peened surface still needs a coating.

Aluminum oxide

Aluminum oxide is a hard, angular grit rather than a bead, often used instead of sand. Its hardness and sharp edges make it good for etching hard materials quickly and for creating a profile before coating.

Plastic media

Plastic media, such as urea, are angular plastic grains that are lightweight and gentler than mineral abrasives. They are used for stripping paint from sensitive substrates and are highly reusable.

Is glass bead blasting safe?

Glass beads avoid the crystalline silica hazard of silica sand, which is why they are considered safer than sand. They are not dust-free: beads fracture with use, and the removed coating and rust also become dust. With an enclosed cabinet, dust extraction and adequate personal protective equipment, bead blasting can be carried out safely. For a broader view of blasting hazards, see the dangers of sandblasting.

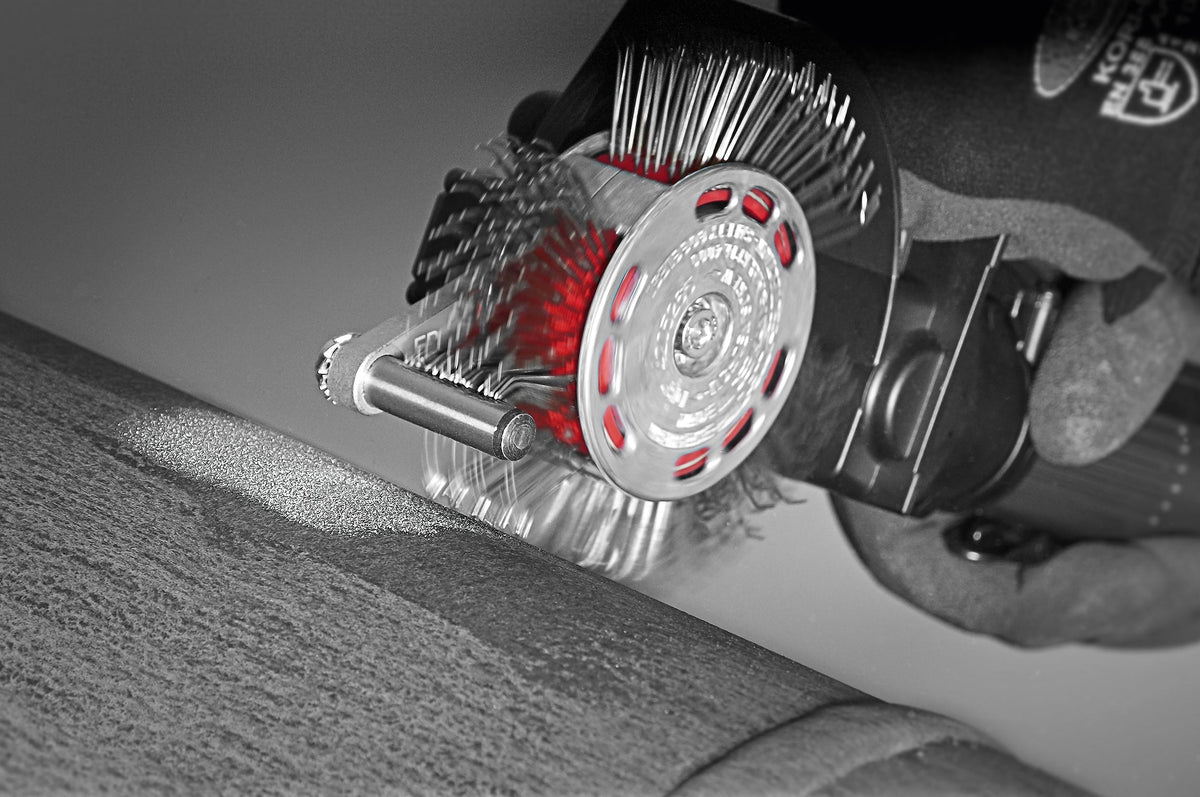

Alternative tools to bead blasting: the Bristle Blaster® and MBX®

The Bristle Blaster® and MBX® from MontiPower® are hand-held power tools that work with patented rotating belts of wire bristles instead of loose media. For small areas, spot repairs and difficult-to-access areas, they can replace blasting with loose abrasives altogether — no cabinet, no media recovery and no blast containment.

The two tools have different jobs:

• The Bristle Blaster® is designed for steel surface preparation before coating. It removes rust, coatings and mill scale and creates an anchor profile in one pass, with cleanliness comparable to ISO 8501-1 Sa 2½ / SSPC-SP 10 and a 65–85 µm Rz profile on standard steel in documented tests. Results vary with steel grade, rust grade, belt and technique.
• The MBX® is designed for car body panels and thinner materials. It removes rust, paint, underseal, sealants and adhesives without heat or warping; coarse and medium belts give a finish similar to sandblasting on such substrates. It is not intended for preparing steel to a blast-comparable standard.

Unlike bead blasting, the Bristle Blaster® creates an angular, blast-like profile rather than a smooth peened finish, which makes it an alternative to sandblasting for coating preparation on smaller areas.

How do MontiPower bristle tools work?

The Bristle Blaster® and MBX® are hand-operated tools fitted with a rotating belt of wire bristles. The bristles are sharpened, flexible and bent forward at the tip. On the Bristle Blaster®, an accelerator bar holds the bristle tips back for a very short moment during each rotation. When released, the tips spring forward and strike the surface with high kinetic energy, then immediately retract (rebound). This strike-and-rebound action removes contamination and leaves micro-indentations that form the characteristic profile. The tools run at a controlled, specified speed — for example around 2,300 rpm for the Bristle Blaster® Ultimate Electric — because too high a speed makes the tips scrape instead of strike.

Alternative to blasting with abrasives in different sectors

Because they use no loose media, these tools are an option wherever blasting is impractical: maritime and industrial maintenance, in-service plant and public infrastructure such as bridges and rail, where blasting is time-consuming, needs containment and is under schedule pressure. Removing the abrasive also removes the abrasive waste stream and the containment it needs. It does not remove all dust — the rust and coating taken off the steel still become particles — so extraction and respiratory protection remain part of the method statement.

Frequently asked questions

Is bead blasting good preparation for painting steel?

Usually not as a final step. Glass beads peen the surface and leave a smooth, dimpled texture rather than the angular anchor profile most protective coating specifications require. Bead blasting is best for cleaning, deburring and cosmetic finishing; for coating preparation, use angular abrasive blasting or an impact tool such as the Bristle Blaster®.

Does bead blasting remove metal?

Very little. Round glass beads strike and rebound rather than cut, so bead blasting removes surface contamination and light oxidation while largely preserving dimensions and fine detail. That makes it suitable for precision and appearance parts, but slow on heavy rust, tight mill scale or thick coatings.

Is glass bead blasting safer than sandblasting?

Glass beads are made from soda-lime glass rather than quartz sand, so they avoid the respirable crystalline silica hazard of silica sand. They still produce dust as they fracture, and removed coatings may contain lead or chromates, so enclosure, extraction and suitable respiratory protection are still required.

What can replace bead blasting for small areas?

For small steel areas that must be coated, the Bristle Blaster® cleans and profiles without loose media, with cleanliness comparable to Sa 2½ / SSPC-SP 10 in documented tests. For car body panels and thin sheet, the MBX® removes rust, paint and underseal without heat or warping.
