Specially designed to remove corrosion in areas that are difficult to reach.

Home > Products > Powertools > MBX® Axial

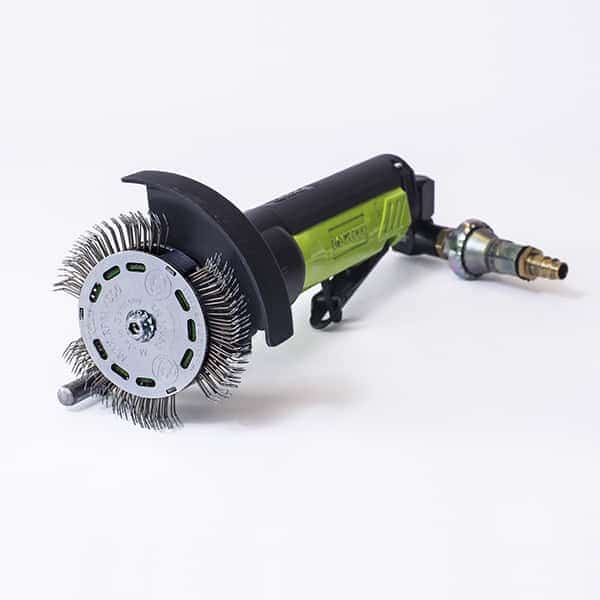

The MBX® Axial is specially designed to remove corrosion in areas that are difficult to reach – like door rabbets, roof joints, wheel housings – to create a blasted surface for superior adhesion.

These characteristics make the Axial a perfect complement to the well-proven MBX® systems.

The MBX® Axial tool can be used with MBX® Belts. When equipped with an Accelerator Bar (optional purchase item, ZU-082 / ZU-083), it can also be used with Bristle Blaster® Belts – for higher bristle impact and efficiency.

Highly flexible in tight areas

Removing corrosion and oxidation, rust and scale

Removing paint, protective coatings and sealers

Including a swivel connector


Technical Datasheet


MBX belt coarse
MBX® belt, steel, coarse
black, 11 mm


MBX belt medium
MBX® belt, steel, medium,
ochre, 11 mm


MBX belt fine
MBX® belt, steel, fine,
green, 11 mm


MBX belt stainless coarse
MBX® belt, stainless steel
coarse, blue, 11 mm


MBX belt stainless fine
MBX® belt, stainless steel
fine, blue, 11mm



accelerator bar steel
Accelerator Bar Steel 11 mm


accelerator bar stainless steel
Accelerator Bar Stainless Steel 11 mm


Adaptor system
Adaptor System 11 mm



MBX® Axial  set

Frequently asked questions


What applications is the MBX® Axial suitable for?

The MBX® Axial Blaster® supplements the MBX® for carrying out body work at areas that are especially difficult to reach, in particular, grooves, joints and inner edges.

Thanks to its special geometric shape and belts with just one row of wire bristles, it is ideal for working in, e.g. roof joints (rain channels), wheel housings and or door rabbets (door jambs).

The Accelerator Bar increases the striking energy of the bristles, enabling the MBX® Axial to work highly effectively and quickly, e.g. when removing rust or sealants.

Can I also use MBX® Axial Belts with other drive units?

No, because MBX® Axial Belts are specially developed for use with the MBX® Axial drive unit. The Accelerator Bar mounted on the unit increases the kinetic energy of the bristles. The preassembled Air Pressure Regulator reduces the air pressure and ensures the optimum rotational speed. This is essential to enable the MBX® Axial Belts to work effectively.

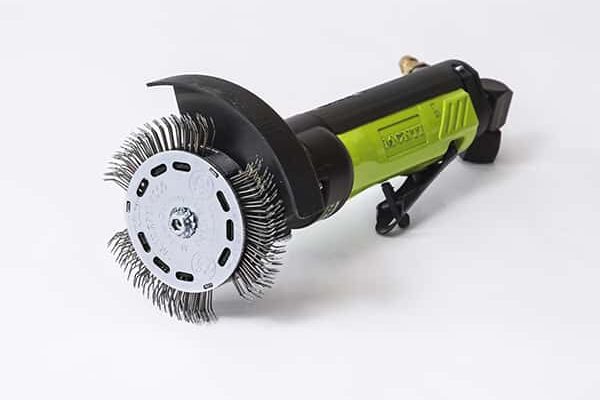

Can the MBX® Axial also be used without the Accelerator Bar?

Yes, this is in principle possible. If, for instance, it is difficult to see the work area, you may have to, or we recommend that, you work without the Accelerator Bar. For this purpose, the arm on which the Accelerator Bar is mounted can be detached.

However, working WITHOUT the Accelerator Bar reduces the striking energy of the bristles and consequently their effectiveness at cleaning and removing rust.

Where can I find instructions on how to use the MBX® Axial?

It is essential that you know how to work correctly with MBX® Axial Technology. You can find appropriate instructions in the user manual. We also recommend that you watch our application film.

What servicing work does the MBX® Axial need?

The compressed-air motor should be regularly oiled. All you have to do is put a few drops of low-viscosity oil into the compressed-air connection. Proper maintenance ensures that the tool enjoys a longer service life and is a precondition for warranty claims.
